As a leading product engineering, R&D and innovation firm, KritiKal Solutions offers an amalgam of its expertise in software, vision, and embedded systems design and development. Our advanced surround view system and ADAS Technology empower the driver with a complete 360 around view camera for car or vehicle. With a 360-degree visual perspective of the area surrounding the vehicle, it can be utilized for maneuvering in tight parking spaces and avoiding obstacles outside the direct line of sight. It offers an easy and DIY calibration process for users, minimal modules to simplify the process and provide scope for optimization. The 360 around view monitor system is powered with four wide-angle cameras mounted on vehicular parts to capture overlapping fields of view. The ECU or ADAS processing unit stitches the camera input into a seamless top-down view for perspective transformation and lens distortion. It features enhanced optical detection and distance measurement through integrated ultrasonic or radar sensors.

We understand that at times calibration gets disturbed due to vibrations, and thus, KritiKal’s in-house surround view system solution addresses this challenge. Our approach enables users to perform calibration at their own location conveniently. The solution features optimized software algorithms without any third-party or Open-Source Software (OSS) components that impart geometric alignment and photometric alignment for color and brightness correction. It synchronizes and merges high-resolution video streams in real-time for seamless 360-degree view car camera coverage and composite view synthesis of 2D-bird eye view images. Its other extensive features include 3D-surround view, split view (3D+bird’s eye), 3D reverse parking assistance, auto recovery of camera failure, auto activation, system diagnostics, single/left/right camera view, integration with infotainment display. Algorithm sub-components are modularized to match the SOC pipeline elements; this helps in faster porting, configurations and optimizations on different hardware and firmware topologies. It features active fault detections at various stages with intelligent mitigation and fail-safe mechanisms focusing on Functional safety (ISO 26262).

#Solution Features

Delivering Top-Notch Road Safety Assurance You Desire

Calibration Pattern Detection

The vehicle 360 camera system utilizes a unique calibration pattern to enable an easy do-it-yourself calibration process for users or drivers. It performs robust detection and computation of homographic models across cameras. This is helpful for image correction and stitching of captured images in real-time.

Image Detection

The surround view monitoring system performs detection of heavily warped unique calibration patterns in the individual fisheye images. It then utilizes intelligent image processing techniques in a 360-around view camera to detect multiple calibration patterns that may feature heavy perspective distortion.

Image Correction

The solution then executes bird’s eye view correction processing using advanced computer vision techniques. These include corrections in parameters, such as illumination, color, and brightness across cameras. This helps in seamless transition in the 360° view.

Image Alignment

The surround view monitoring system performs image correction process, including the alignment of the image. It achieves state-of-the-art results even with limited compute resources. The solution can run in real-time without third party or OSS dependencies to generate the bird’s eye view.

Image Blending

It then blends the captured images together and stitches them to create a two-dimensional image. The same is displayed on the vehicle’s infotainment system for a clearer view and environmental understanding. It also created static 3D images (Bitmaps, Viewpoint Selection).

Additional Features

The solution enables users to gain a complete view of the vehicle and its surroundings using a surround view camera system with four different cameras. It is user friendly, optimized for a Quad–core ARM processor, lightweight, and easy to set up and calibrate by the driver or user.

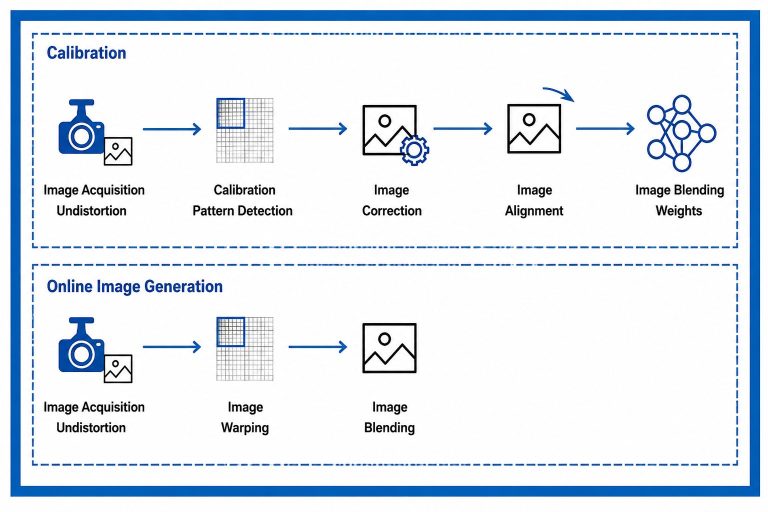

Pipeline of Surround View System

#Why Choose Us

Where Innovation Speaks through Quality

Deep Industrial Expertise & Network

Decades of experience in developing automotive vision systems and technologies for advanced driver assistance and vehicle monitoring.

Extensive understanding of real-world driving challenges and building solutions to address the same effectively with a client-centric philosophy.

Continuous R&D to bring AI-assisted obstacle detection, cutting-edge imaging, smarter and reliable safety features to our customers.

Rigorously tested products to stay compliant with industry standards while delivering consistent and durable performance at all times.

A trusted OEM and partner network consisting of fleet operators, system integrators, and manufacturers across multiple markets.

End-to-end assistance and dedicated support under one roof right from design, development, installation, to post-market support.

Cost-effective surround view camera system for reduced accident risks, contributing to sustainable mobility ecosystems through long-term transparent partnerships.

Experience 360° Safety Like Never Before

Enhanced safety in urban environments with reduced blind spots and hazards using a surround view system, enabling collision avoidance with obstacles, pedestrians, animals, and other vehicles.

Improved parking and maneuvering through precise user/driver guidance features, especially in tight parking spaces, complex garages, and off-road conditions.

Seamless integration with ADAS System features, such as lane assist, automatic braking, and more to increase overall driver and vehicle safety.

Future-proof design and scalable customizations like integration of infotainment systems, cockpit controllers, AR displays, and tailored UI/UX.

Promotes flexible configuration in autonomous driving platforms across a wide range of vehicles, from luxury sedans, SUVs to trucks and buses, using advanced driver assistance systems and surround view system
